Productt >> Finisar
Product Name: Finisar SFP
Product Class: FCLF-8521-3
Finisar SFP

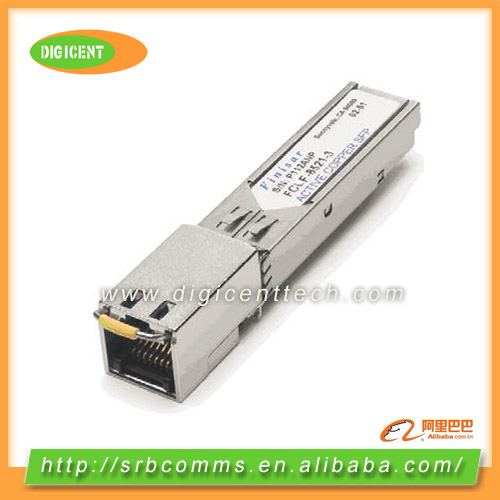

RoHS 6 Compliant 1000BASE-T RoHS 0 to 85C Copper SFP Transceiver (FCLF-8521-3)

Finisar's FCLF-8520-3/FCLF-8521-3 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

Key Features:

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Extended case temperature range (0°C to +85°C)
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly
  • RoHS compliant and Lead Free
  • Access to physical layer IC via 2-wire serial bus
  • 10/100/1000 BASE-T operation in host systems with SGMII interface

Applications:

  • 1.25 Gigabit Ethernet over Cat 5 cable

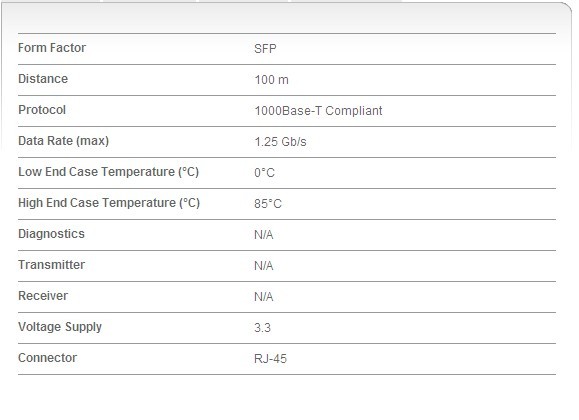

Specifications:
