Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF1217P2BTL

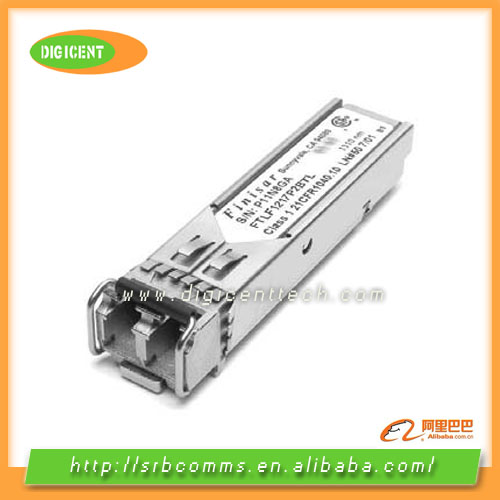

Finisar SFP


RoHS 6 Compliant FE 1310nm LED SFP Transceiver (FTLF1217P2BTL)

Finisar's FTLF1217P2BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with 100Base-FX, FDDI, ESCON, and Multimode SONET OC-3 SR-0 and OC-1 SR-0 standards as specified in IEEE Std 802.3, ISO/IEC 9314-3, Enterprise Systems Architecture/390, and ANSI T1.416.01-1999, respectively. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Key Features:

  • Up to 200 Mb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 1310nm LED-based transmitter
  • Duplex LC connector
  • RoHS Compliant and Lead-Free
  • Up to 2km on 62.5/125μm MMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation
  • Industrial operating temperature range: -40°C to 85°C

Applications:

  • 125 Mb/s 100Base-FX Ethernet / FDDI
  • 200 Mb/s ESCON
  • 155 Mb/s Multimode SONET OC-3 SR-0
  • 51 Mb/s Multimode SONET OC-1 SR-0

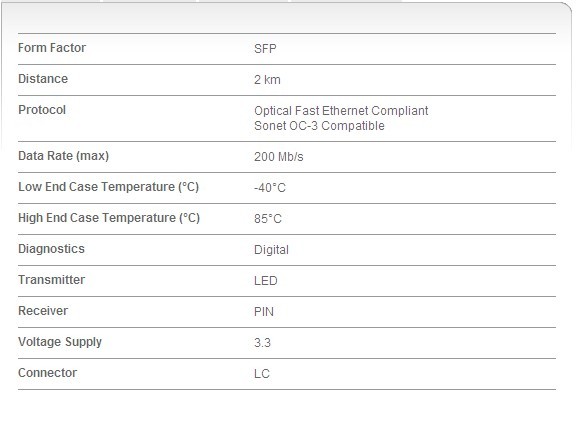

Specifications:
