Productt >> Finisar

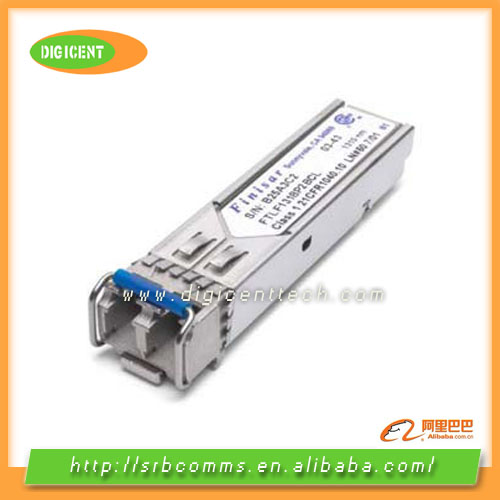

Product Name: Finisar SFP
Product Class: FTLF1318P2BCL
Finisar  SFP


1.25 Gb/s RoHS Compliant Long-Wavelength (FTLF1318P2xCL)

Finisar's FTLF1318P2xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Appl. Note AN-2038.

Key Features:

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • 1310nm Fabry-Perot laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • Up to 10 km on 9/125μm SMF
  • Metal enclosure for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <500mW typical
  • Commercial operating temperature range: 0°C to 70°C

Applications:

  • 1.25Gb/s 1000Base-LX Ethernet
  • 1.06 Gb/s Fibre Channel

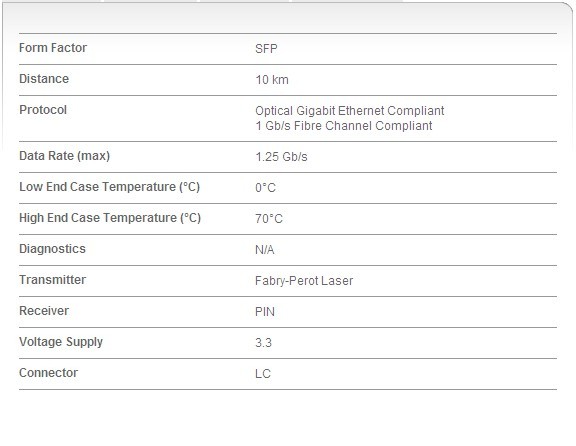

Specifications:
