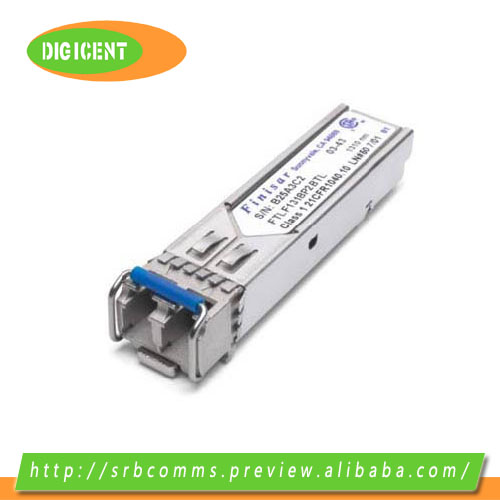

Finisar's FTLF1318P2BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Appl. Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
Key Features:
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Build-in digital diagnostic functions
1310nm Fabry-Perot laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
Up to 10 km on 9/125μm SMF
Metal enclosure for lower EMI
Single 3.3V power supply
Low power dissipation <600mW typical
Industrial operating temperature range: -40°C to 85°C
