Productt >> Finisar

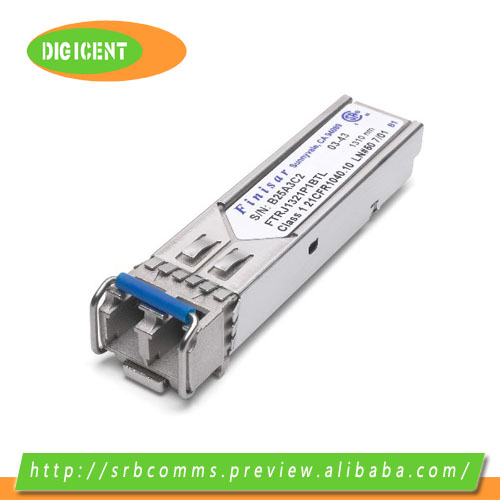

Product Name: Finisar SFP
Product Class: FTRJ1321P1BTL
Finisar SFP


OC-48 SR/STM I-16 RoHS Compliant Multirate SFP (FTLF1321P1BTL)

Finisar's FTRJ1321P1BTL SFP transceivers are compatible with the Small Form Factor Pluggable MSA . They comply with SONET OC-48 SR (SDH STM I-16) standards, Gigabit Ethernet and Fibre Channel, and additionally they are compatible with SONET OC-12 and SONET OC-3. Digital diagnostics functions are available also via the 2-wire serial bus.

Key Features:

  • Up to 2.67Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled Fabry-Perot 1310nm laser transmitter
  • Duplex LC connector
  • RoHS compliant and lead-free
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Extended operating temperature range: -40°C to 85°C


Applications:

  • SONET OC-48 SR / SDH STM I-16
  • SONET OC-12 SR / SDH STM I-4
  • SONET OC-3 SR / SDH STM I-1
  • Gigabit Ethernet / Fibre Channel

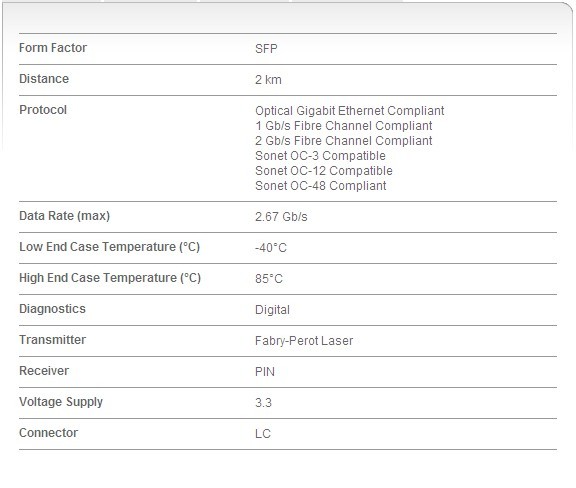

Specifications:
