Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF1323P1BTR

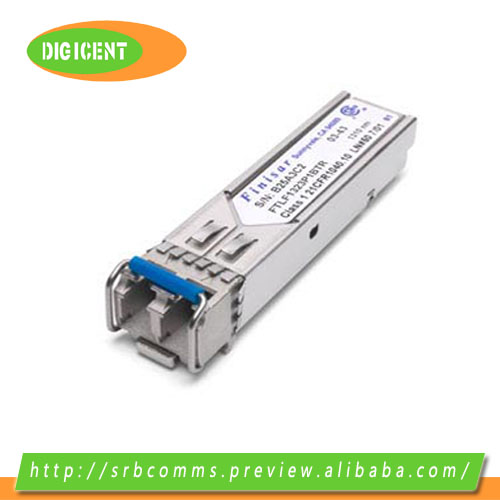

Finisar SFP


OC-3 IR-1/STM S-1.1 RoHS Compliant SFP (FTLF1323P1xTR)

The FTLF1323P1xTR SFP transceivers are compatible with the small form factor pluggable MSA. They comply with SONET and SDH standards, and are suitable for fast ethernet applications. Digital diagnostics functions are available via the 2-wire serial bus.

Key Features:

  • Up to 155 Mb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled Fabry-Perot 1310nm laser transmitter
  • Duplex LC connector
  • RoHS compliant and lead-free
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Industrial operating temperature range: -40°C to 85°C


Applications:

  • SONET OC-3 IR-1 / SDH STM S-1.1
  • SONET OC-3 SR / SDH STM I-1
  • Suitable for Fast Ethernet

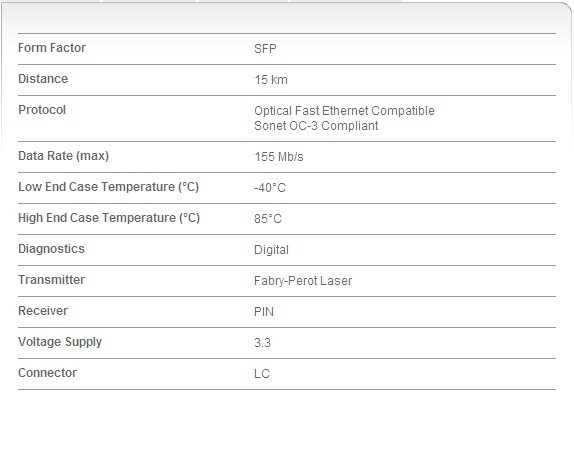

Specifications:
