Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF1419P1BCL

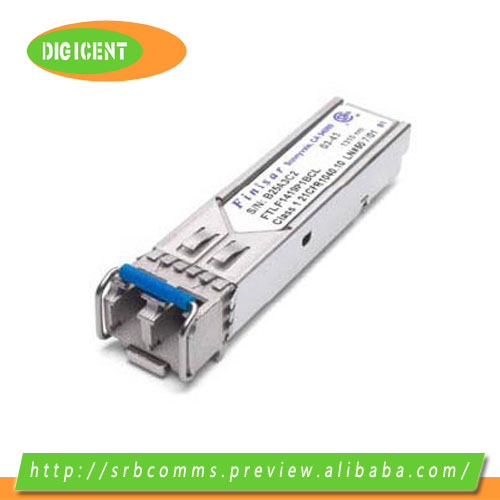

Finisar  SFP


2 Gigabit 40km RoHS Compliant Long-Wavelength SFP (FTLF1419P1xCL)

Finisar's FTLF1419P1xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3, and 1x and 2x Fibre Channel as defined in FC-PI 13.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Key Features:

  • Up to 2.125Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled 1310nm DFB laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • No Rate Select input required for Fibre Channel 1x/2x Operation
  • Up to 55 km on 9/125μm SMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Extended operating temperature range: -10°C to 70°C


Applications:

  • 1.25Gb/s 1000Base-LX Ethernet
  • Dual Rate 1.06 / 2.125 Gb/s Fibre Channel

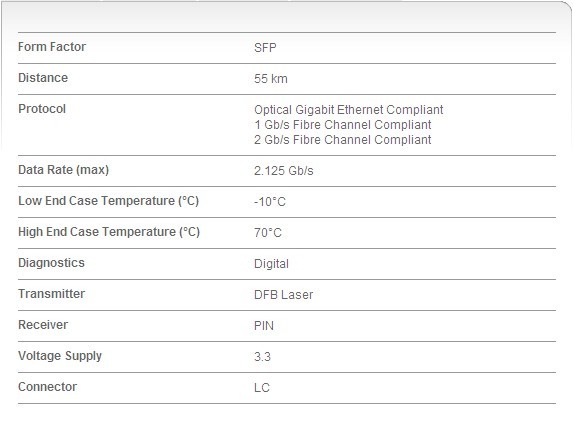

Specifications:
