Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTRJ1421P1BCL

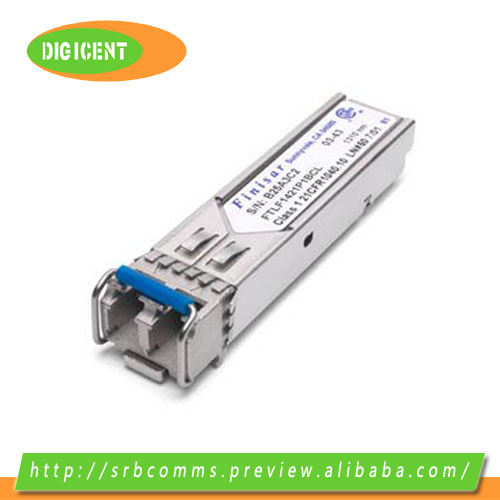

Finisar SFP


OC-48 IR-1/STM S-16.1 RoHS Compliant Multirate SFP (FTLF1421P1xCL)

Finisar's FTRJ1421P1xCL SFP transceivers are compatible with the Small Form Factor Pluggable MSA. They comply with SONET OC-48 IR-1 (SDH STM S-16.1) standards, Gigabit Ethernet and Fibre Channel. They are also compatible with SONET OC-12 and SONET OC-3. Digital diagnostics functions are available via the 2-wire serial bus.

Key Features:

  • Up to 2.67Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled DFB 1310nm laser transmitter
  • Duplex LC connector
  • RoHS compliant and lead-free
  • Metal enclosure, for lower EMI
  • FEC Support
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Commercial operating temperature range: -10°C to 70°C


Applications:

  • SONET OC-48 IR-1 / SDH STM S-16.1
  • SONET OC-12 SR / SDH STM I-4
  • SONET OC-3 SR / SDH STM I-1
  • Gigabit Ethernet / 1x/2x Fibre Channel

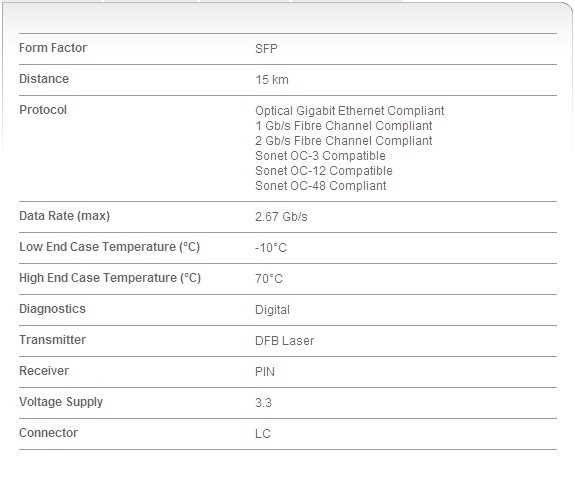

Specifications:
