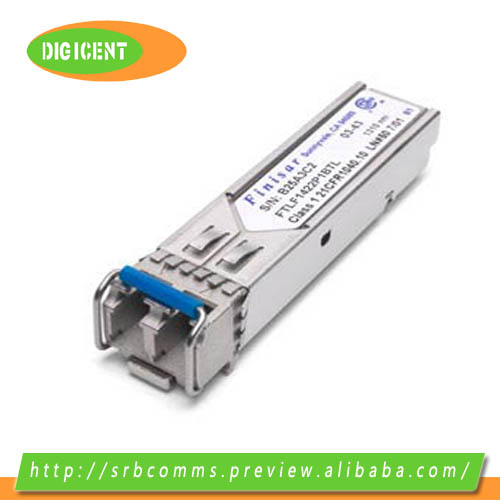

Finisar's FTRJ1422P1xTL SFP transceivers are compatible with the Small Form Factor Pluggable MSA. They comply with SONET and SDH standards at OC-12 LR-1/STM L-4.1. Digital diagnostics functions are available via the 2-wire serial bus.
Key Features:
622 Mb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
Uncooled DFB 1310nm laser transmitter
Duplex LC connector
RoHS compliant and lead-free
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <700mW typical
Industrial operating temperature range: -40°C to 85°C
