Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF1424P2BTR
Finisar  SFP


4 Gigabit RoHS Compliant Long-Wavelength SFP Transceiver (FTLF1424P2BTR)

Finisar's FTLF1424P2xTR Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are compatible with Fibre Channel per FC-PI-2 Rev. 10.0. Rate selectable versions are also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3. The product is RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038.

Key Features:

  • Up to 4.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 1310nm DFB laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • Up to 10 km on 9/125μm SMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Industrial operating temperature range: -40°C to 85°C


Applications:

  • Tri Rate 1.06 / 2.125 / 4.25 Gb/s Fibre Channel
  • 1.25Gb/s Gigabit Ethernet (Rate selectable version)

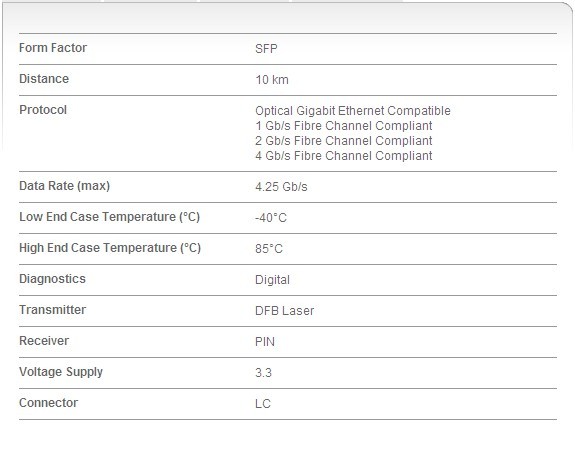

Specifications:
