Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF1721P1BCL

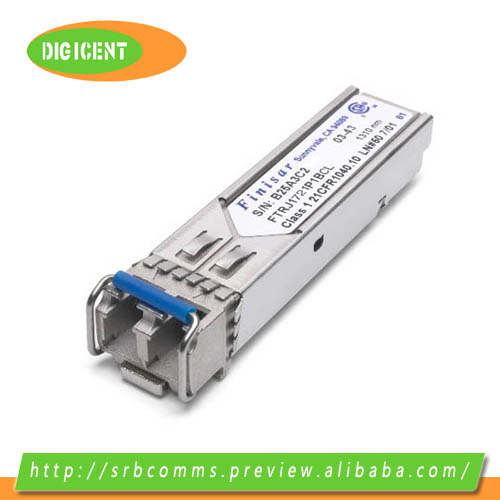

Finisar SFP


OC-48 LR-1/STM L-16.1 RoHS Compliant Pluggable SFP (FTLF1721P1xCL)

Finisar's FTLF1721P1xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They comply with SONET OC-48 LR-1 (SDH STM L-16.1) standards, Gigabit Ethernet and Fibre Channel as well as being compatible with SONET OC-12 SR and SONET OC-3 standards. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Key Features:

  • Up to 2.67 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled 1310 nm DFB laser transmitter
  • APD Receiver
  • Duplex LC connector
  • RoHS Compliant
  • Metal enclosure, for lower EMI
  • Single 3.3 V power supply
  • Low power dissipation <700 mW
  • Commercial temperature range: -10°C to 70°C

Applications:

  • SONET OC-48 LR-1 / SDH STM L-16.1
  • SONET OC-12 / SDH STM-4
  • SONET OC-3 / SDH STM-1
  • Gigabit Ethernet / 1x/2x Fibre Channel

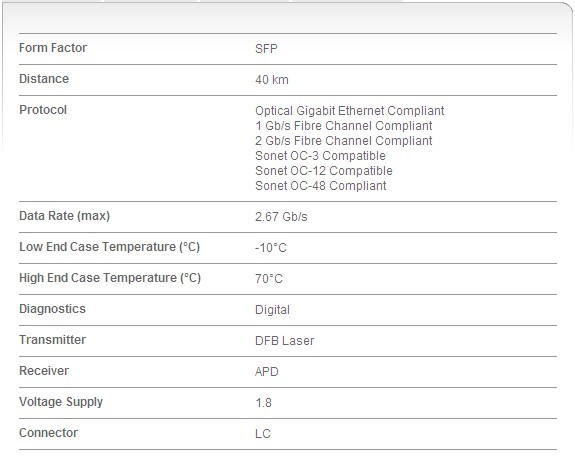

Specifications:
