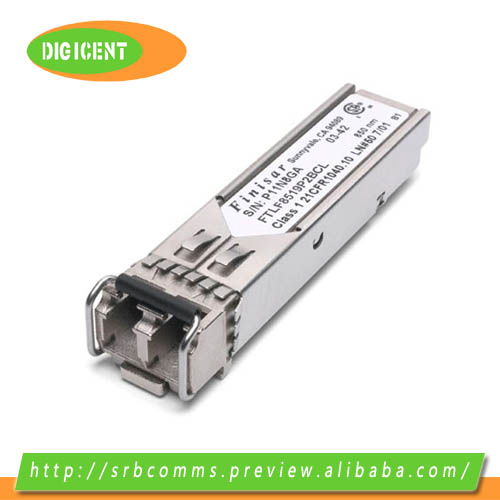

Finisar's FTLF8519P2xCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 7.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038.
Key Features:
- Up to 2.125 Gb/s bi-directional data links
- Hot-pluggable DFP footprint
- 850nm Oxide VCSEL laser transmitter
- Duplex LC connect
- RoHS Compliant and Lead-Free
- Up to 500m on 50/125µm MMF,300m on 62.5/125µm MMF
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Low power dissipation
- Commercial operating temperature range: 0°C to 70°C
Applications:
- 1.25 Gb/s 1000Base-SX Ethernet
- Dual Rate 1.063/2.125 Gb/s Fibre Channel

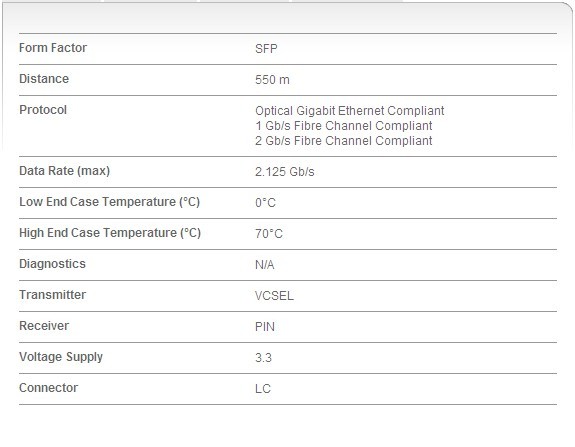

Specifications:
