Productt >> Finisar
Product Name: Finisar SFP
Product Class: FTLF8519P2BTL
Finisar  SFP

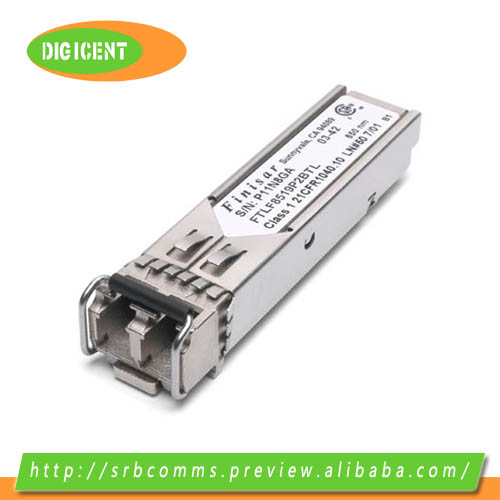

RoHS 6 Compliant 2Gb/s 850nm FC -40 to 85C SFP Transceiver (FTLF8519P2BTL)

Finisar's FTLF8519P2BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.

Key Features:

  • Up to 2.125Gbs/bi-direction data links
  • Hot Pluggable SFP Footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS Compliant and Lead-Free
  • Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • Low power dissipation
  • Industrial operating temperature range: -40°C to 85°C

Applications:

  • 1.25 Gb/s 1000Base-SX Ethernet
  • Dual Rate 1.063/2.125 Gb/s Fibre Channel

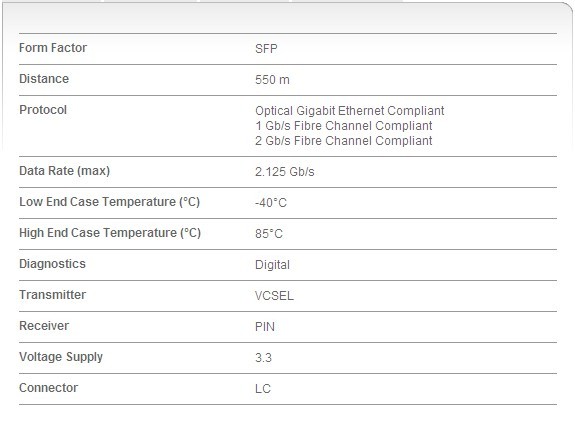

Specifications:
