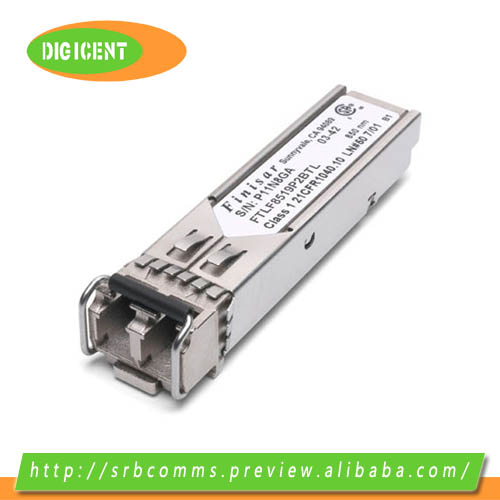

Finisar's FTLF8519P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
Key Features:
- Up to 2.125 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- 850 nm Oxide VCSEL transmitter
- Duplex LC connector
- RoHS compliant and Lead-Free
- Up to 500m on 50/125 µm MMF, 300m on 62.5/125 µm MMF
- Metal enclosure, for lower EMI
- Single 3.3 V power supply
- <500mW power dissipation
- Extended operating temperature range: -40°C to 85°C
Applications:
- 1.25 Gb/s 1000Base-SX Ethernet
- Dual Rate 1.063/2.125 Gb/s Fibre Channel and Wireless Application

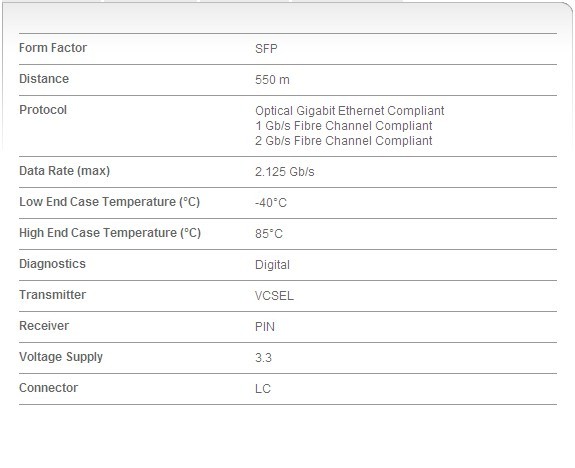

Specifications:
