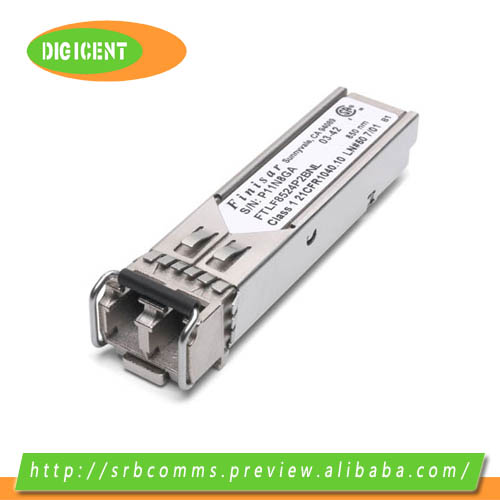

RoHS 6 Compliant 4Gb/s 850nm FC -20 to 85C SFP Transceiver (FTLF8524P2xNL)

• Up to 4.25 Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Built-in digital diagnostic functions
• 850 nm Oxide VCSEL transmitter
• Duplex LC connector
• RoHS compliant
• Up to 500 meter on 50/125 µm MMF, 300 meter on 62.5/125 µm MMF
• Metal enclosure for lower EMI
• Single 3.3 V power supply
• Extended operating temperature range: -20°C to 85°C

Applications:

• Tri-rate 1.063/2.125/4.25 Gb/s Fibre Channel
• 1.25 Gb/s 1000BASE-SX Ethernet (Rate selectable version)

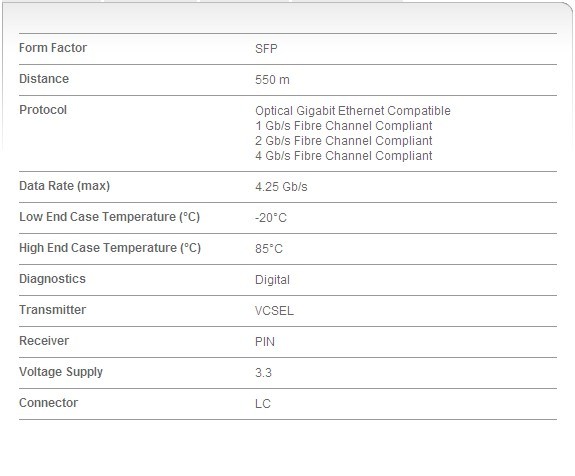

Specifications:
