Finisar's FTLF8524P2xNV SFP transceivers are compatible with the small form factor pluggable MSA.
Key Features:
- Up to 4.25 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- 850 nm Oxide VCSEL transmitter
- Duplex LC connector
- RoHS compliant
- Up to 500 meter on 50/125 µm MMF, 300 meter on 62.5/125 µm MMF
- Metal enclosure for lower EMI
- Single 3.3 V power supply
- Extended operating temperature range: -20°C to 85°C
Applications:
- Tri-rate 1.063/2.125/4.25 Gb/s Fibre Channel
- 1.25 Gb/s 1000BASE-SX Ethernet (Rate selectable version)

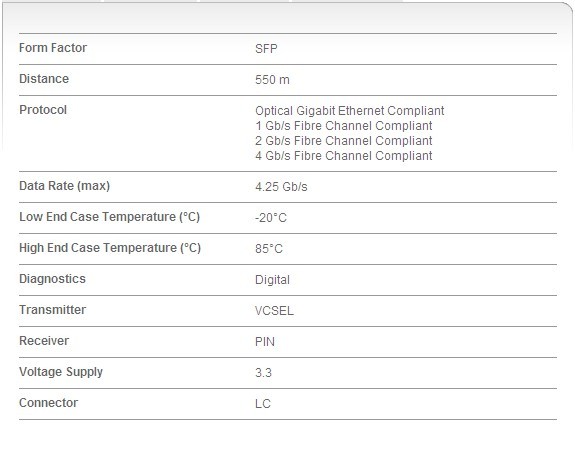

Specifications:
