Productt >> Finisar
Product Name: Finisar XFP
Product Class: FTLX1412D3BCL

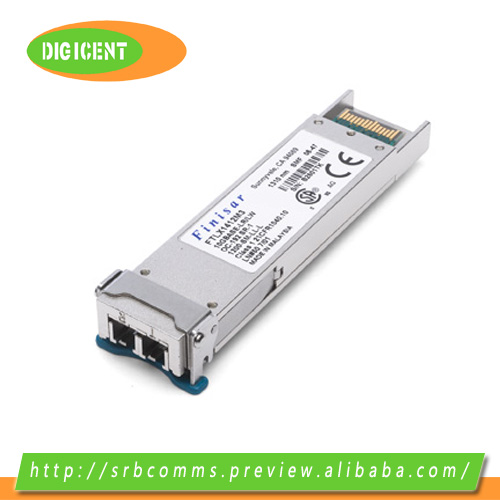

Finisar  XFP


10Gb/s Datacom 10km XFP Transceiver (FTLX1412D3BCL)

Finisar's FTLX1412D3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The FTLX1412D3BCL complies with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. If SONET/SDH compliance is required, please see Finisar Part Number FTLX1412M3BCL. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038.

Key Features:

  • Supports 9.95Gb/s to 10.5Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Maximum link length of 10km
  • RoHS-6 compliant (lead-free)
  • Power dissipation <2W
  • Temperature range -5°C to 75°C
  • No Reference Clock required
  • Uncooled 1310nm DFB laser.
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • Requires 3.3V power supply only

Applications:

  • 10GBASE-LR/LW 10 Gb/s Ethernet
  • 1200-SM-LL-L 10 Gb/s Fibre Channel

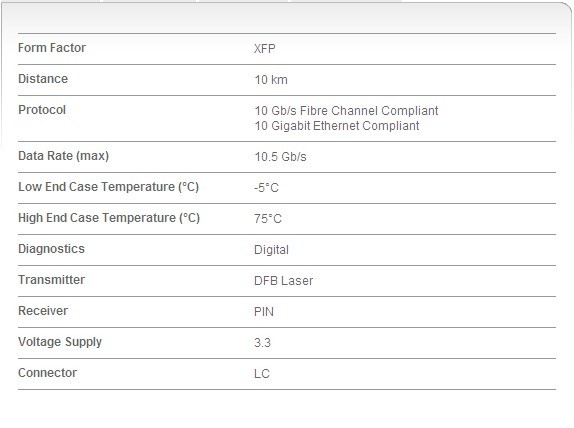

Specifications:
