Productt >> Finisar

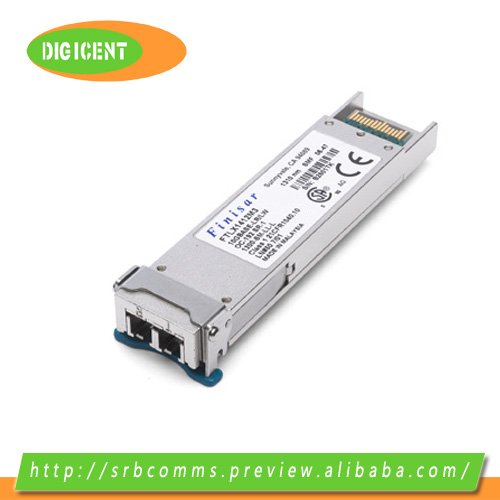

Product Name: Finisar XFP
Product Class: FTLX1412M3BCL
Finisar  XFP


10Gb/s Multi-protocol 10km XFP Transceiver (FTLX1412M3BCL)

Finisar's FTLX1412M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with SONET OC-192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038.

Key Features:

  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Maximum link length of 10km
  • RoHS-6 Compliant (lead-free)
  • Uncooled 1310nm DFB laser
  • Duplex LC connector
  • Power dissipation <2W
  • Requires 3.3V power supply only
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range -5°C to 75°C

Applications:

  • SONET OC-192 SR-1/SDH STM I-64.1
  • 10GBASE-LR/LW 10G Ethernet
  • 1200-SM-LL-L 10G Fibre Channel
  • ITU-T G.709
  • 10GBASE-LR/LW + FEC
  • 10G FC and FEC

Specifications:
