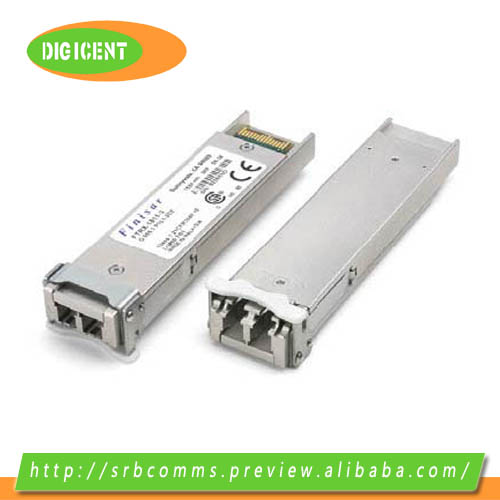

Finisar's FTLX3812M3xx Small Form Factor 10Gb/s (XFP) transceiver complies with the current XFP Multi-Source Agreement (MSA) Specification1. It supports amplified DWDM 10Gb/s SONET/SDH and 10-Gigabit Ethernet applications. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. For a SONET-only version, please see FTLX3812S3xx. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC3, and Finisar Application Note AN-20384.
Key Features:
- Supports 9.95Gb/s to 11.1Gb/s
- Hot-pluggable XFP footprint
- Temperature-stabilized DWDM EML transmitter
- RoHS-6 Compliant (lead-free)
- 100GHz ITU Grid, C-Band
- Duplex LC connector
- Power dissipation <3.5W
- Built-in digital diagnostic functions
- Temperature range: -5°C to 70°C
Applications:
- Amplified DWDM 10G SONET/SDH
- Amplified DWDM 10G Ethernet

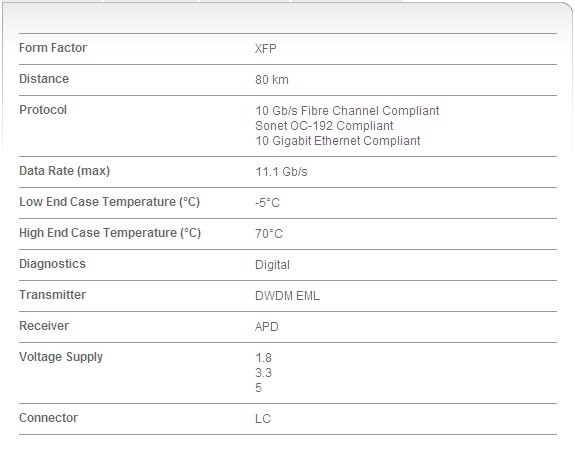

Specifications:
