100m transmission over unshielded twistedpair (UTP) Category 5 Cable
Perform any necessary scrambling / descrambling between the 100Base-TX and 100Base-FX formats.
Support intelligent auto-negotiation 100BASE-T operation in host systems
Hot-pluggable capability
SFP form with compact RJ-45 connector
With spring latch for high density application
Very low EMI and excellent ESD protection
+3.3V single power supply
Low power dissipation
Operating case temperature: 0 to +70°C
Detailed product information in EEPROM
Applications
LAN 100Base-T
Switch to Switch interface
Switched backplane applications
Router/Server interface
Standard
Compliant with SFP MSA
Compliant with IEEE Std 802.3TM-2002
Compliant with FCC 47 CFR Part 15, Class B
RoHS compliance and lead free assembly process compatibility
Description

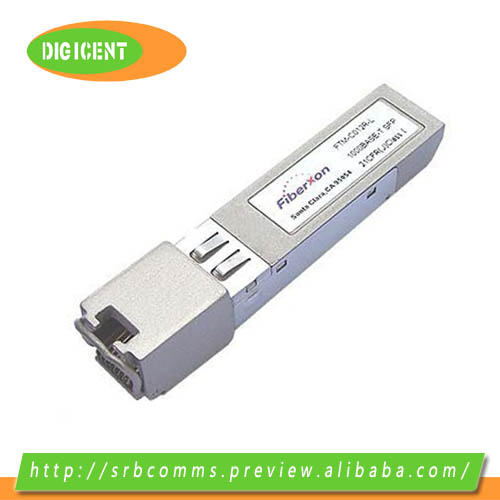

Fiberxon FTM-C001R-LG 100BASE-T copper SFP transceiver is high performance, cost effective module compliant with the 100BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab,which supporting 100Mbps up to 100 meters reach over unshielded twisted-pair category-5 cable. FTM-C001R-LG is a “Hot-Pluggable” 100Base-TX Ethernet electrical interface SFP module.
The FTM-C001R-LG provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the two-wire serialCMOS EEPROM protocol.
