Features

• Up to 1.25Gbps bi-direction data links
• 100m transmission over unshielded twistedpair  (UTP) Category 5 Cable
• 1000BASE-T operation in host systems with Serdes interface default
• Hot-pluggable capability
• SFP form with compact RJ-45 connector
• With spring latch for high density application
• Very low EMI and excellent ESD protection
• +3.3V single power supply
• Low power dissipation
• Operating case temperature: -5 to +70°C
• Detailed product information in EEPROM
• Physical layer IC can be accessed via 2-wire serial bus

Applications

• LAN 1000Base-T
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface

Standard

• Compatible with SFP MSA
• Compatible with IEEE Std 802.3TM-2002
• Compatible with FCC 47 CFR Part 15, Class B
• RoHS compliance

Description

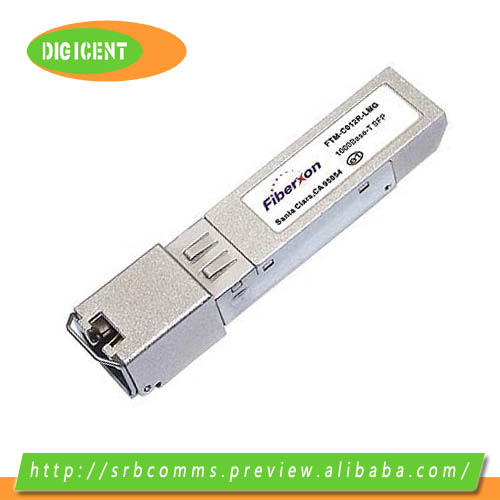

Fiberxon FTM-C012R-LMG 1000BASE-T copper SFP transceiver is high performance, cost effective module compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category-5 cable.

The FTM-C012R-LMG supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

The FTM-C012R-LMG provides standard serial ID information compatible with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.

The FTM-C012R-LMG is compliant with RoHS
