Features

• Dual data-rate of 1.25Gbps/1.0625Gbps operation
• 850nm VCSEL laser and PIN photodetector
• 550m transmission with 50/125 μm MMF
• 275m transmission with 62.5/125 μm MMF
• Standard serial ID information Compatible with SFP MSA
• SFP MSA package with duplex LC connector
• With Spring-Latch for high density application
• Very low EMI and excellent ESD protection􀂋
• +3.3V single power supply􀂋
• Operating case temperature: 0 to +70°C

Applications

• Switch to Switch interface
• Switched backplane application
• Router/Server interface
• Other optical transmission systems

Standard􀂋

• Compatible with SFP MSA
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Compatible with FCC 47 CFR Part 15,Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• Compatible with Telcordia GR-468-CORE
• RoHS compliance and lead free assembly process compatibility

Description

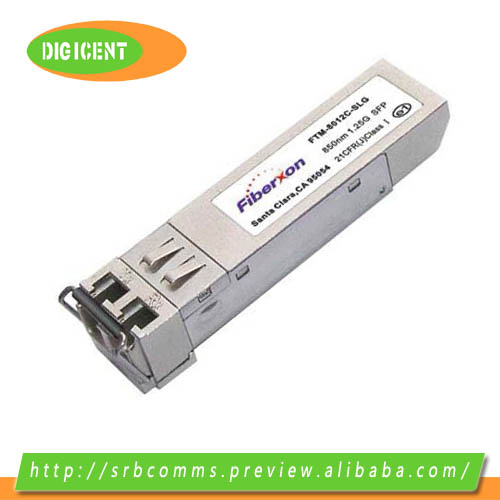

     Fiberxon FTM-8012C-SLG SFP transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission on 50/125 μm MMF.

      The transceiver consists of two sections: The transmitter section incorporates a VCSEL laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

     The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

      The standard serial ID information Compatible SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).

FTM-8012C-SLG is compliant with RoHS .
