Features

• Tri-rate 1~2.125Gbps data links
• Up to 300m transmission distance at 2.125Gbps; 550m transmission distance at 1.25Gbps
• 850nm VCSEL and PIN photodetector
• SFP MSA package with duplex LC connector
• With spring latch for high density application
• Low power dissipation
• Class I laser product
• Low EMI and excellent ESD protection
• Single +3.3V power supply
• Operating case temperature:
  Standard: 0 to 70°C
  Extended: -10 to +85°C
  Industrial: -40 to +85°C

Applications

• 1.25Gbps 1000Base-SX Ethernet
• Dual Rate 1.0625/2.125Gbps Fibre Channel

Standard

• Compatible with SFP MSA
• Compatible with ANSI specifications for Fibre Channel
• Compatible with IEEE 802.3
• Compatible with FCC 47 CFR Part 15, Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• Compatible with Telcordia GR-468-CORE
• Compliant with RoHS

Description

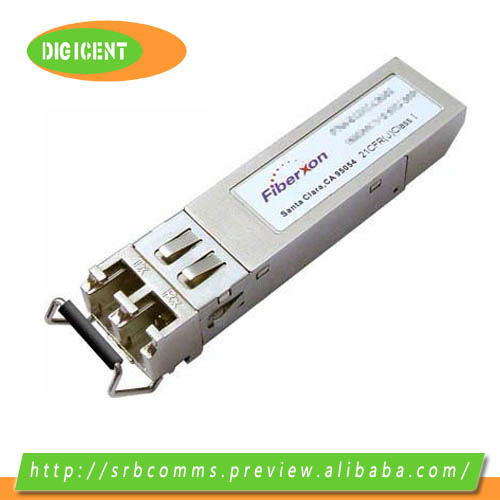

      FTM-8020C-SLxG is designed for use in Fibre Channel applications both at 1.0625Gbps and 2.125Gbps. This transceiver also meets the requirements of IEEE 802.3 Gigabit Ethernet standard and can be used in Gigabit Ethernet (1000Base-SX) network equipment.

      FTM-8020C-SLxG incorporates a highly reliable 850nm VCSEL in its transmitter section. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

     The standard serial ID information compatible SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).

FTM-8020C-SLxG is compliant with RoHS.
