Features

• Build-in PHY supporting SGMII Interface
• Build-in high performance MCU supporting easier configuration
• Support more link status monitor, such as CRC, package counter and Far End Fault Indication (FEFI)
• Dual data-rate of 100BASE-LX/1000BASE-LX operation
• 1310nm FP laser and PIN photo-detector
• 0.5m~10km transmission with SMF
• Standard serial ID information Compatible with SFP MSA
• SFP MSA package with duplex LC connector
• With Spring-Latch for high density application
• Very low EMI and excellent ESD protection
• +3.3V single power supply
• Operating case temperature: 0 to +70°C

Applications

• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Standard

• Compatible with SFP MSA
• Compatible with IEEE 802.3-2002
• Compatible with IEEE 802.3ah-2004
• Compatible with FCC 47 CFR Part 15, Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• Compatible with Telcordia GR-468-CORE
• RoHS compliance

Description

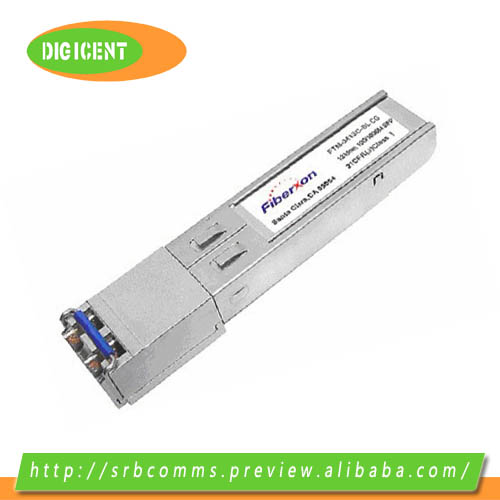

Fiberxon FTM-3413C-SLCG SFP transceiver is high performance, cost effective module. It is designed for Gigabit Ethernet for 100BASE-LX/1000BASE-LX applications from 0.5m to 10km with SMF.

The transceiver consists of two sections: The standard SFP part and the PHY part. FTM-3413C-SLCG is built with SGMII interface. It can operate as 100BASE-LX or 1000BASE-LX by software configuration or rate select hardware pin. independently

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS(or Link)/Disable/Fault information via I2C register access.

The standard serial ID information Compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).

Building-in high performance MCU in this module,Host can more easily configure all functions of FTM-3413C-SLCG.

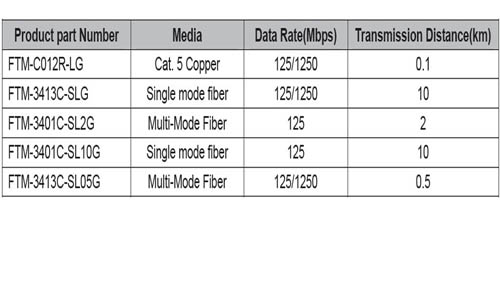

Related SGMII SFP Products
