Features

• Up to 622Mbps data-rate
• 1310nm FP laser and PIN photodetector for 15km and 40km transmission
• 1310nm DFB laser and PIN photodetector for 40km transmission
• 1550nm uncooled DFB laser and PIN photodetector for 80km transmission
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA package with duplex LC connector
• With spring latch for easily removing
• Very low EMI and excellent ESD protection
• +3.3V single power supply
• Operating case temperature: 0 to +70°C

Applications

• SDH STM-4, S-4.1, L-4.1, L-4.2
• SONET OC-12 IR1, LR1, LR2
• Other optical links

Standard

• Compatible with SFP MSA
• Compatible with SFF-8472 Rev 9.5
• Compatible with ITU-T G.957 and G.958
• Compatible with Telcordia GR-253-CORE
• Compatible with FCC 47 CFR Part 15, Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• Compliant with RoHS

Description

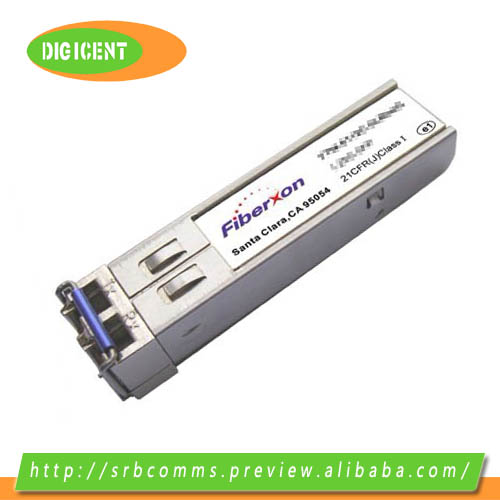

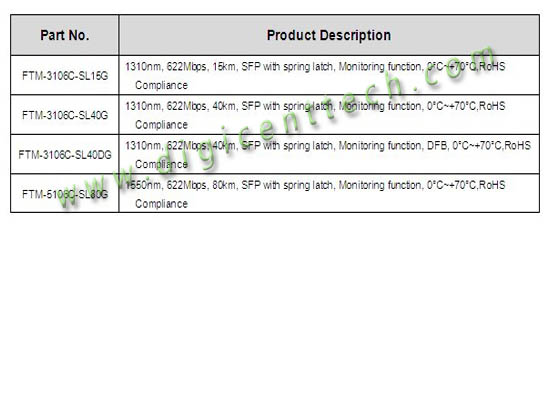

Fiberxon 622Mbps Spring-latch SFP transceiver is high performance, cost effective module that supports data-rate of 622Mbps and transmission distance from 15km to 80km.

The transceiver consists of two sections: The transmitter section incorporates a FP or uncooled DFB laser, and the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

An enhanced Digital Diagnostic Monitoring Interface Compatible with SFF-8472 has been incorporated into the transceivers. It allows real time access to the transceiver operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage by reading a built-in memory with I2C interface. For further information, please refer to SFF-8472 Rev 9.5.
