- SDH STM-1, S-1.1, L-1.1, L-1.2
- SONET OC-3 IR1, LR1, LR2
- Other optical links
Standard
- Compatible with SFP MSA
- Compatible with ITU-T G.957 and G.958
- Compatible with Telcordia GR-253-CORE
- Compatible with FCC 47 CFR Part 15, Class B
- Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
- Compliant with RoHS
Description

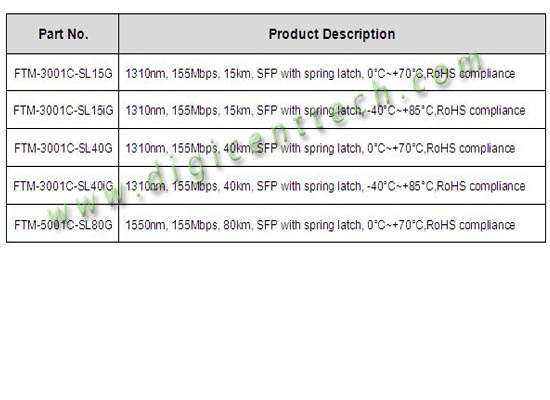

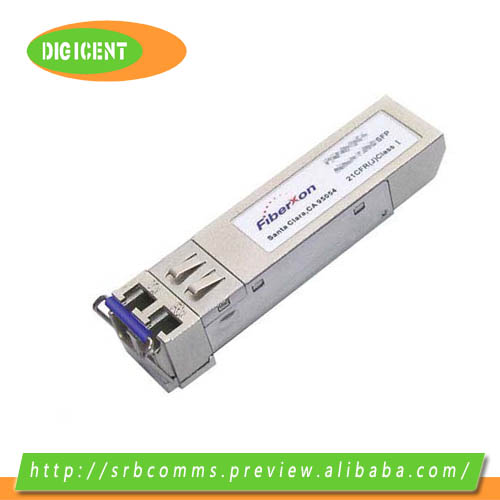

Fiberxon 155Mbps spring-latch SFP transceiver is high performance, cost effective modules that supports data-rate of 155Mbps and transmission distance from 15km to 80km.
The transceiver consists of two sections: The transmitter section incorporates a FP or uncooled DFB laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
The standard serial ID information Compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).
