Features
- 1.25Gbps bi-directional data links
- 50km transmission distance with SMF
- 1550nm DFB laser transmitter
- SFP MSA package with LC optical receptacle
- With Spring latch for high density application
- Single +3.3V power supply
- Hot-pluggable capability
- Low power dissipation
- Very low EMI and excellent ESD protection
- Class I laser product
- Monitoring interface compatible with SFF-8472
- Operation case temperature: 0℃ to 70℃
Applications
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Standard
- Compatible with SFP MSA
- Compatible with IEEE 802.3
- Compatible with FCC 47 CFR Part 15, Class B
- Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
- Compatible with Telcordia GR-468-CORE
- RoHS compliant
Description

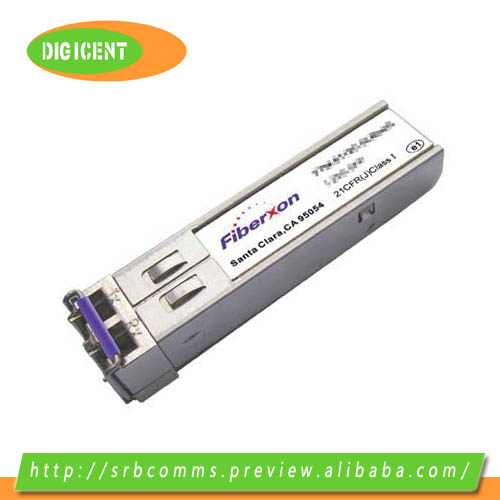

Fiberxon’s FTM-5112C-SL50G, 1.25Gbps SFP transceivers are high performance, cost effective modules. They are designed for Gigabit Ethernet applications for 50km distance with SMF.
The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
The standard serial ID information compatible SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).
FTM-5112C-SL50G is compliant with RoHS.
|
