Standard
- Compatible with SFP MSA
- Compatible with SFF-8472
- Compatible with IEEE 802.3z
- Compatible with FCC 47 CFR Part 15, Class B
- Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
- Compatible with Telcordia GR-468-CORE
- RoHS compliant
Description

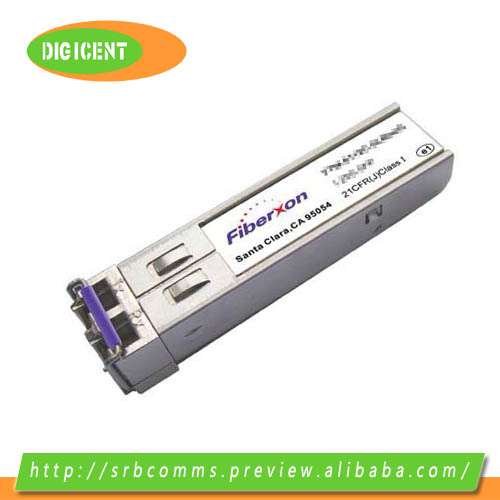

Fiberxon FTM-5112C-SL120G SFP transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps and 120km transmission distance on SMF.
The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a APD photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
FTM-5112C-SL120G provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. For further information, please refer to SFP MSA and SFF-8472 Rev 9.5.
FTM-5112C-SL120G is compliant with RoHS.
