Features

• 1.25Gbps bi-directional data links
• Up to 10km point-point transmission
• 1310nm FP transmitter and 1490nm PIN receiver for FTM-9612C-SL10(i)G
• 1490nm DFB transmitter and 1310nm PIN receiver for FTM-9912C-SL10(i)G
• Class I laser product
• Low EMI and excellent ESD protection
• SFP MSA package with single LC receptacle
• Single +3.3V Power Supply
• Detailed product information in EEPROM
• FTM-9612C-SL10(i)G Operating Case
• Temperature
  Standard: 0 to +70°C
  Industrial: -40 to +85°C

Applications

• Gigabit Ethernet Application
• Point-to-Point FTTX Application
• Compatible with SFP MSA
• Compatible with IEEE 802.3ah -2004 Gigabit Ethernet 1000BASE-BX10 PMD Specifications
• Digital Diagnostic SFF-8472 compatible
• Bellcore GR-468 compatible
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• RoHS compliance

Description

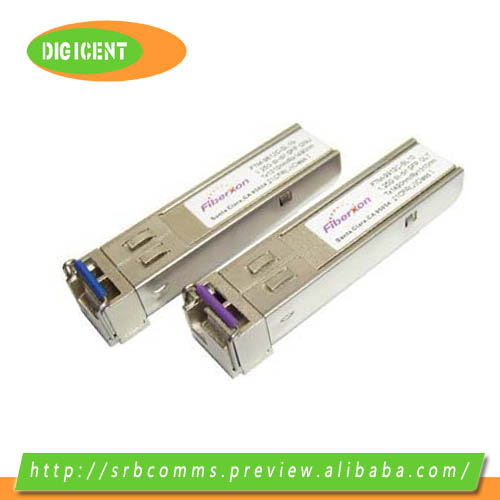

Fiberxon 1.25G single fiber bi-directional SFP transceivers are high performance, cost effective modules, which supports data rate of 1.25Gbps and transmission distance up to 10km.

FTM-9612C-SL10(i)G is normally used in the client side (ONU), which transmits 1310nm optical signal and receives 1490nm optical signal. While FTM-9912C-SL10(i)G is used in the central office side (OLT), which transmits 1490nm optical signal and receives 1310nm optical signal.

The standard serial ID information compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP MSA.

FTM-9612C-SL10(i)G and FTM-9912C-SL10(i)G are compliant with RoHS.
