Standard

• Compatible with SFP MSA
• Compatible with IEEE 802.3ah -2004 Gigabit Ethernet 1000BASE-BX10 PMD Specifications
• Digital Diagnostic SFF-8472 compatible
• Bellcore GR-468 compatible
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• RoHS compliance

Description

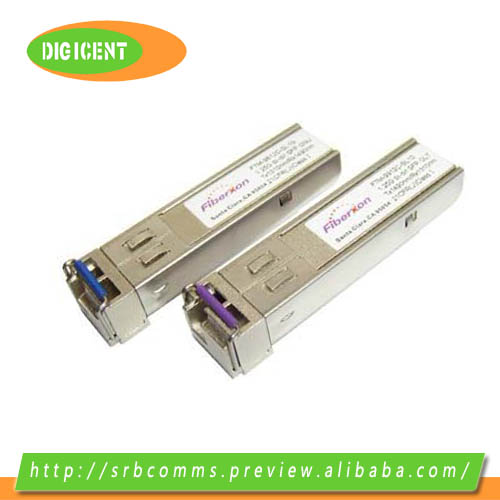

Fiberxon 1.25G single fiber bi-directional SFP transceivers are high performance, cost effective modules, which supports data rate of 1.25Gbps and transmission distance up to 10km.

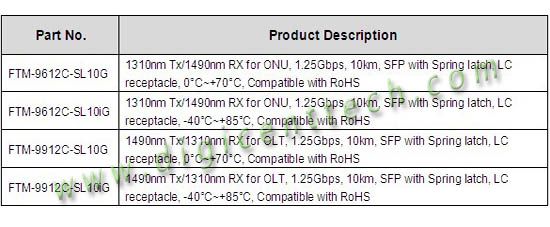

FTM-9612C-SL10(i)G is normally used in the client side (ONU), which transmits 1310nm optical signal and receives 1490nm optical signal. While FTM-9912C-SL10(i)G is used in the central office side (OLT), which transmits 1490nm optical signal and receives 1310nm optical signal.

The standard serial ID information compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. For further information, please refer to SFP MSA.

FTM-9612C-SL10(i)G and FTM-9912C-SL10(i)Gare compliant with RoHS.
