Features

• Multi-rate operation from 155Mbps to 2.67Gbps
• Uncooled DFB laser transmitter
• Eight CWDM wavelengths available
• Multi-source package with LC optical interface
• With Spring latch for high density application
• Color coded lever for different wavelengths
• Class 1 laser product
• Very low jitter
• 18/28dB minimum link budget
• Single +3.3V power supply
• Hot-pluggable capability
• Monitoring interface compatible with SFF-8472
• Operating temperature 0°C to +70°C

Applications

     Optical communication in Metro/Access Networks:

• 1×/2× Fiber Channel
• Gigabit Ethernet
• SDH/SONET/ATM
• Other optical links

Standard

• Compatible with SFP MSA
• Compatible with SFF-8472
• Compatible with FCC 47 CFR Part 15, Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• Compatible with ITU-T G.694.2
• Compatible with ITU-T G.695
• RoHS compliant

Description

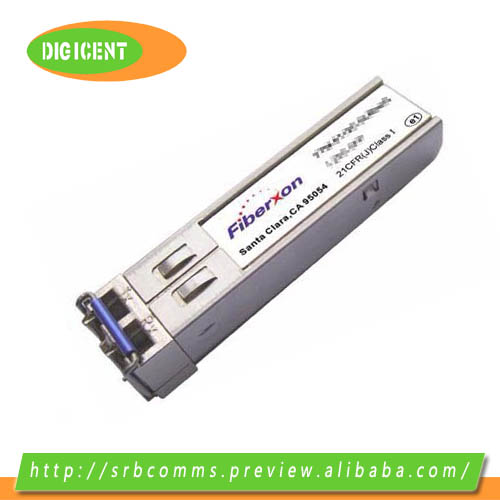

FTM-6128C-SLxxxxG is designed for Coarse Wavelength Division Multiplexing (CWDM) applications at data rates from 155Mbps to 2.67Gbps. There are eight centre wavelengths available at present: 1471nm, 1491nm, 1511nm,
1531nm, 1551nm, 1571nm, 1591nm and 1611nm, compatible with ITU-T G694.2. It offers a guaranteed minimum optical link budget of 18 or 28dB.

The transmitter section of FTM-6128C-SLxxxxG incorporates a highly reliable uncooled DFB laser and the receiver section utilizes a PIN/APD receiver. All modules satisfy Class 1 Laser Safety requirements.

FTM-6128C-SLxxxxG provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts
end-users when particular operating parameters are outside of a factory set normal range.
