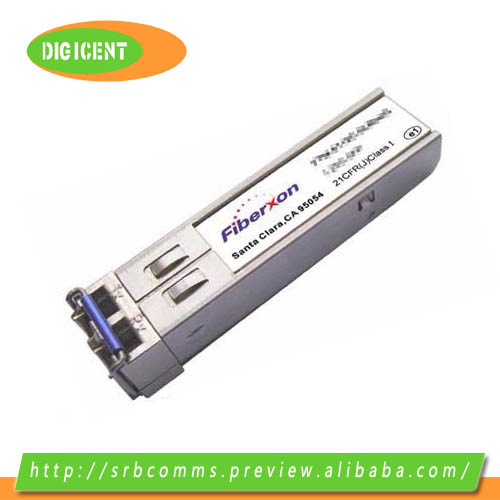

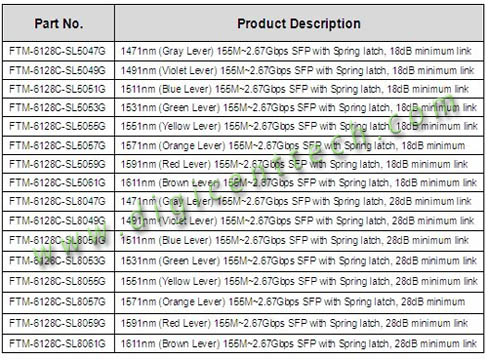

FTM-6128C-SLxxxxG is designed for CoarseWavelength Division Multiplexing (CWDM) applications at data rates from 155Mbps to 2.67Gbps. There are eight centre wavelengths available at present: 1471nm, 1491nm, 1511nm, 1531nm, 1551nm, 1571nm, 1591nm and 1611nm, compatible with ITU-T G694.2. It offers a guaranteed minimum optical link budget of 18 or 28dB.
The transmitter section of FTM-6128C-SLxxxxG incorporates a highly reliable uncooled DFB laser and the receiver section utilizes a PIN/APD receiver. All modules satisfy Class 1 Laser Safety requirements.
FTM-6128C-SLxxxxG provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
FTM-6128C-SLxxxxG is compliant with RoHS.
