Features

• Support 10GE application at the data-rate of 9.953Gbps and 10.3125Gbps
• Up to 300m transmission distance on 50μm MMF (2000MHz.km)
• 850nm VCSEL and PIN receiver
• XFI electrical interface
• 2-wire interface for integrated Digital Diagnostic monitoring
• XFP MSA package with duplex LC connector
• Hot pluggable
• Very low EMI and excellent ESD protection
• +5V, +3.3V power supply
• Power consumption less than 1.5 W
• Operating case temperature: 0~+70°C

Applications

• 10GBASE-SR at 10.3125Gbps
• 10GBASE-SW at 9.953Gbps
• Other optical links

Standard

• Compatible with XFP MSA
• Compatible with IEEE 802.3ae-2002
• Compatible with FCC 47 CFR Part 15, Class B
• Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I
• RoHS compliance

Description

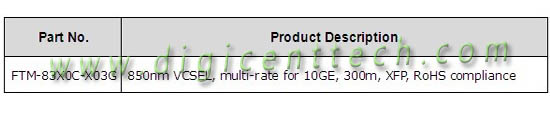

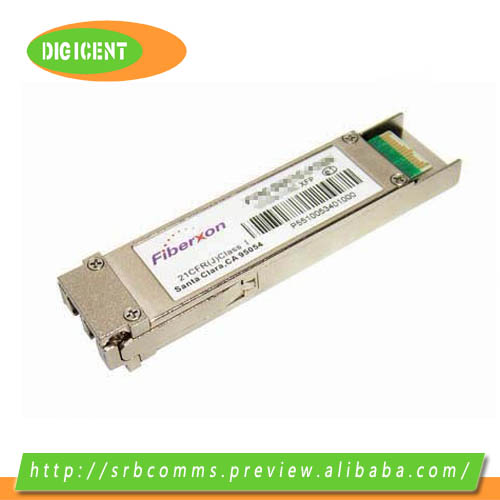

FTM-83X0C-X03G is a high performance, cost effective module, which is optimized for 10G Ethernet, supporting data-rate of 10.3125Gbps (10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

The transceiver consists of two sections: The transmitter section incorporates an 850nm VCSEL, driver and re-timer. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA) and CDR.

The module is hot pluggable into the 30-pin XFI connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module. The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.

The user can access transceiver monitoring and configuration data via the 2-wire XFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
