Features

• Support 10GE application at the data-rate of 10.3125Gbps and 9.953Gbps
• Up to 40km transmission
• 1550nm cooled EML and PIN receiver
• XFI electrical interface
• 2-wire interface for integrated Digital Diagnostic monitoring
• XFP MSA package with duplex LC connector
• Hot pluggable
• Very low EMI and excellent ESD protection
• +5V, +3.3V power supply
• Power consumption less than 3.5 W

Applications

• 10GBASE-ER at 10.3125Gbps
• 10GBASE-EW at 9.953Gbps
• Other optical links

Standard

• Compliant with XFP MSA
• Compliant with IEEE 802.3ae-2002
• Compliant with FCC 47 CFR Part 15, Class B
• Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I
• RoHS compliance

Description

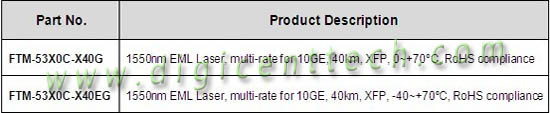

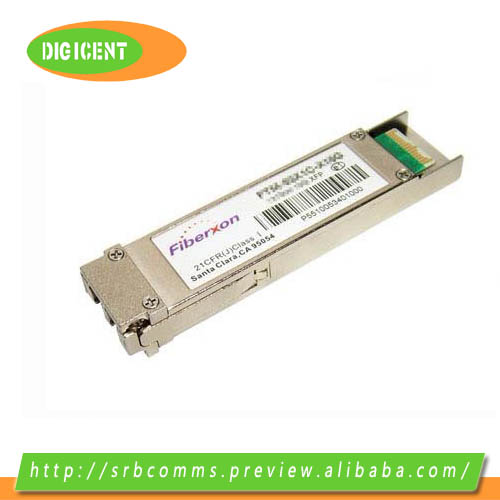

FTM-53X0C-X40G is a high performance, cost effective modules, which is optimized for 10G Ethernet, supporting data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW), and transmission distance up to 40km.

The transceiver consists of two sections: The transmitter section incorporates a 1550nm cooled EML, driver and re-timer. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA) and CDR.

The module is hot pluggable into the 30-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module. The optical output can be disabled by
LVTTL logic high-level input of TX_DIS. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver.

A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire XFP Management Interface. This interface uses a single address, A0h, with a memory map divided into a lower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
