Productt >> Source Photonics

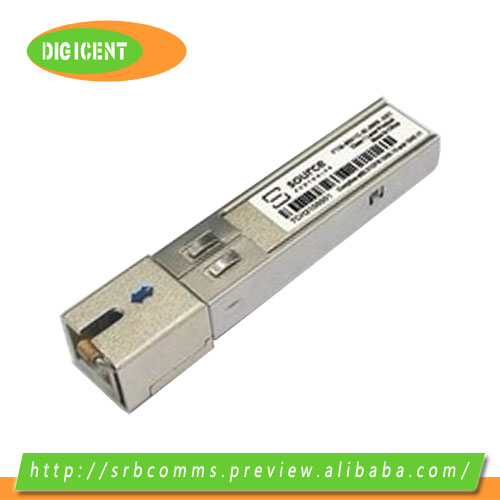

Product Name:	Source GEPON
Product Class:	SPS-43-GB-P2-CDFB

Features

Source Photonics
Support IEEE 802.3ah™-2004 1000BASE-PX20 GEPON OLT side application
Single fiber bi-directional data links with symmetric 1.25Gbps upstream and downstream
Integrated with micro-optics WDM filter for dual wavelength Tx/Rx operation at 1490/1310nm
1490nm continuous-mode transmitter with DFB laser
1310nm burst-mode receiver with APD-TIA
Support more than 24dB dynamic range
Digital diagnostic interface compliant with SFF-8472 Rev 9.5
Digital Receiving Signal Strength Indication (RSSI)
Single 3.3V power supply
Maximum 1W total power dissipation
Spring-latch SFP (Small Form-factor Pluggable) package with SC receptacle optical interface.
Operating case temperature: 0~70°C
RoHS compliance
